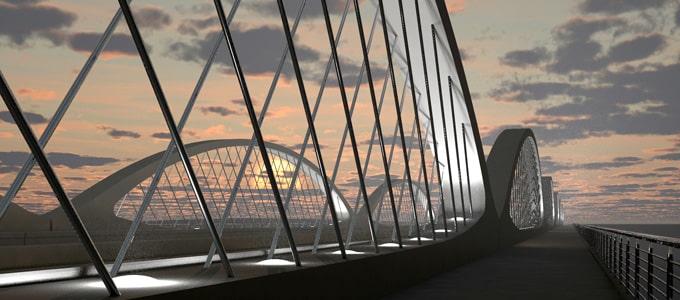

Developing innovative ways to build complex projects is one of Sundt’s specialties. Case in point: the $24.1 million reconstruction of the West 7th Street Bridge in Fort Worth, Texas, a new landmark gateway between the city’s downtown and new cultural district that will feature two, 10-foot-wide pedestrian walkways and 12 precast concrete and stainless steel arches that run the length of the 980-foot-long structure.
When the first phase of construction begins in January 2012, Sundt will keep the current bridge open and operational while constructing the concrete arches offsite – with its own concrete crews. In the spring of 2013, the precast arches will be placed on both sides of the old bridge at night. Once they’re all in place, the old bridge will be closed and demolished and the new bridge will be built in its place – in just 150 calendar days. Area Manager Chris Cedar calls this phase of the project “tight, but do-able” with lots of manpower and planned overtime shifts. In fact, his aim is to open the new bridge earlier than its scheduled completion date of November 2013.
Using Building Information Modeling, or BIM, will help the team manage the project’s complexities, particularly the construction of the arches, because they contain many structural and lighting elements that have the potential to clash with one another if not planned precisely. BIM is a high-tech replacement for construction drawings on paper. Using multi-dimensional computer models, constructability issues can be identified and resolved before construction begins.
Approximately 300,000 pounds of polished stainless steel within the arches and bridge superstructure will be illuminated at night with embedded lighting, making the West 7th Street Bridge a one-of-a-kind in the state of Texas.
